Mitsubishi MSZ-YK09VA-H1/MUZ-YK09VA-H1 Product Introduction
made in China
Energy Efficiency Label: Level 1
Dimensions: Height 298 mm X Width 842 mm X Depth 255 mm
Maintenance period: 2 years
Motor/compressor maintenance period: 5 years
Registration and maintenance method: Please register online for warranty within ten days after purchase, https://www.mitsubishielectric.com.hk/customer-services/warranty?cat=0
Dynamic ground temperature measurement system
PM2.5 electrostatic filter cooling control up and down/left and right automatic swing air supply (6 options)
The independent computerized dehumidifier indoor unit has a slim body and the height of the outdoor unit is only 55CM.
Rated cooling capacity up to 2.55kW
Somatosensory control sleep mode frequency conversion control heating and cooling conversion self-diagnosis air filter
24-hour preset switch
LCD wireless remote control mute design protection circuit
Product Specifications <br data-mce-fragment="1">Model:

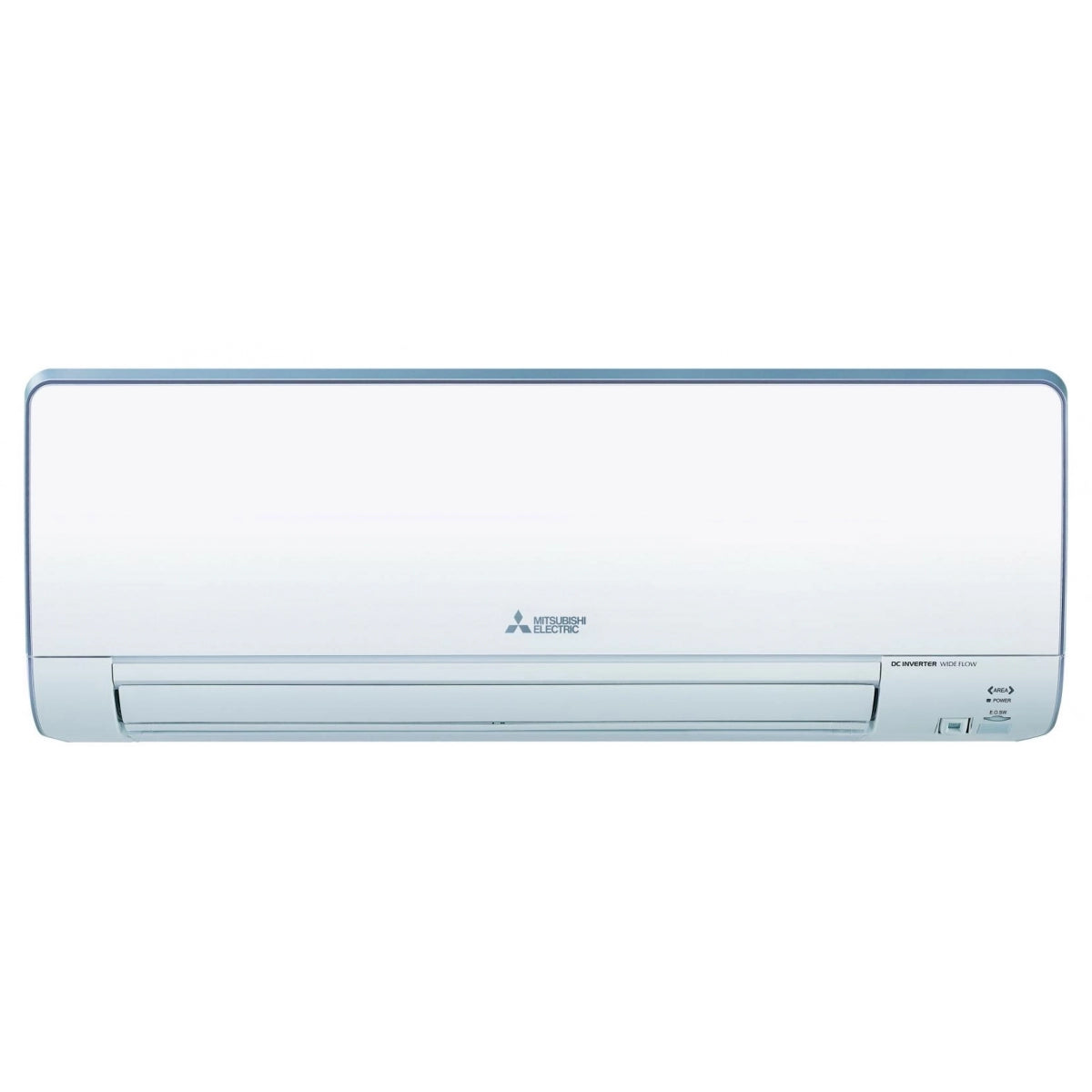

Indoor unit MSZ-YK09VA-H1

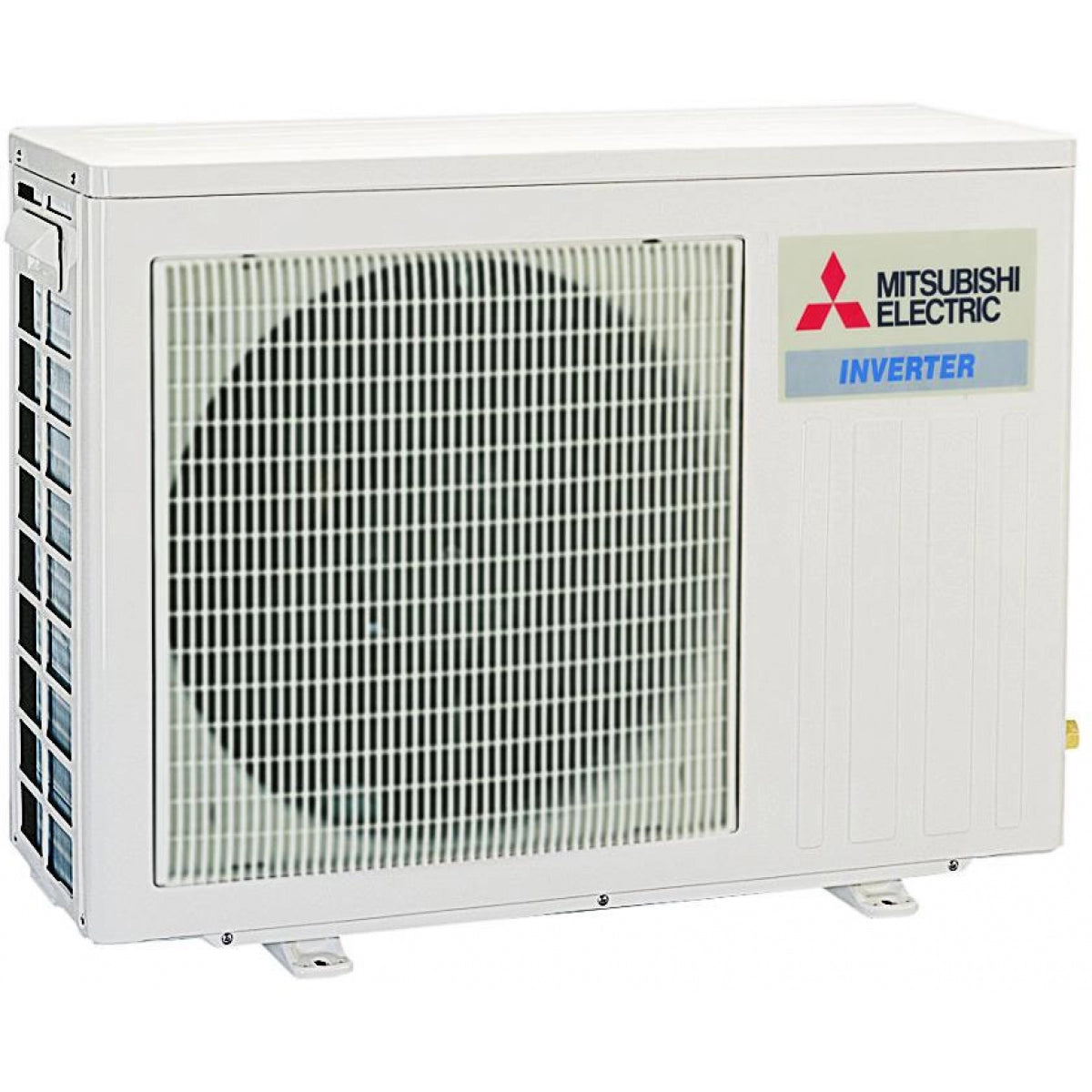

Outdoor unit MUZ-YK09VA-H1
Operating modes: Cooling/Heating Cooling/Heating capacity:
Rating
(kW) 2.55 / 3.40
(BTU/h) 8,701 / 11,601
Minimum and maximum values (kW) 1.00-3.20 / 0.80-4.50
(BTU/h) 3,412-10,918 / 2,730-15,354
power consumption:
Rating (kW) 0.69 / 0.90
Minimum and maximum values (kW) 0.23-1.03 / 0.21-1.31
Operating current (A) 3.60 / 5.00
Air flow (m³/min.) 10.17 / 10.33
Energy efficiency value 3.70 / 3.78
Dehumidification power (I/h) 0.37 / 0.37
Noise value:
Indoor unit (silent)/low-high (dB(A) 25-40 / 24-39
Outdoor unit (dB(A) 46 / 49
Dimensions (height x width x depth):
Indoor unit (mm) 298 x 842 x 255
Outdoor unit (mm) 550 x 800 x 285
net weight:
Indoor unit (kg) 11
Outdoor unit (kg) 31
Refrigerant pipe diameter-liquid/gas (mm) Ø6.35 / Ø9.52
Maximum piping size - height difference/length (m) 8
Voltage (V) 12
Phase/Frequency: Single Phase/50 Hz Refrigerant Type: R410A
