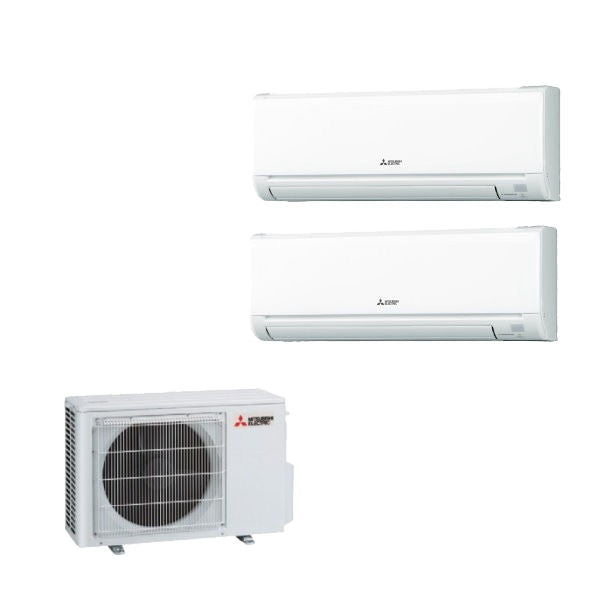

model
- MSZ-GE25VA-E1 (indoor unit/1 HP)
- MSZ-GE35VA-E1 (indoor unit/1.5 HP)
- MXZ-2D53VA2 (outdoor unit/2 HP)
main feature
- 2 horses drag 1 horse + 1.5 horses
- Silent operation, quiet and comfortable
- One machine with multiple connections saves space
- Frequency conversion to save electricity is applicable all year round
- Excellent cooling capacity
- Quick and easy cleaning design
- Open cleaning design
- Independent computer dehumidification
- Tea Essence Refreshing Network
- Frequency conversion control
- Warm and cold conversion
- Coolness control
- Automatic up and down swing air supply (7 options)
- self diagnosis
- 24-hour preset switch
- LCD wireless remote control
- Silent design
- protect the circuit
- automatic restart
product specifications
Number of horses: one drags two horses, 2 horses drags 1 horse + 1.5 horses
Power supply: 220 V / 1 PH / 50 HZ
Refrigeration capacity: 1 indoor unit - 2.50 (1.10 - 3.50) KW
Refrigeration capacity: 1.5 HP indoor unit - 3.50 (1.10 - 4.00) KW
Cooling capacity: Outdoor unit - 18,084 (3,753 - 19,107) BTU/H
Heating capacity: 1 indoor unit - 3.20 (1.30 - 4.50) KW
Heating capacity: 1.5 HP indoor unit - 4.00 (1.60 - 5.30) KW
Heating capacity: Outdoor unit - 21,837 (3,412-23,884) BTU/H
Power consumption: 1 indoor unit - cooling 0.55; heating 0.70 KW
Power consumption: 1.5 HP indoor unit - cooling 0.87; heating 0.96 KW
Power consumption: outdoor unit - cooling 1.54; heating 1.70 KW
Noise value: 1 indoor unit - (19) - 36 / (19) - 36 (silent) / low - high DB(A)
Noise value: 1.5 HP indoor unit - (19) - 36 / (19) - 36 (silent) / low - high DB(A)
Noise level: Outdoor unit - 50 - 53 (silent) / low - high DB(A)
Dimensions: 1 HP Indoor Unit - 295 X 798 X 232 Height X Width X Depth (mm)
Dimensions: 1.5 HP Indoor Unit - 295 X 798 X 232 Height X Width X Depth (mm)
Dimensions: Outdoor unit - 550 X 800 X 285 Height X Width X Depth (mm)
Net weight: 1 indoor unit - 10 kg
Net weight: 1.5 HP indoor unit - 10 kg
Net weight: outdoor unit - 37 kg
Air flow: 1 indoor unit - cooling 11.30; heating 11.50 cubic meters/hour (extra high)
Air flow: 1.5 HP indoor unit - cooling 12.70; heating 11.50 cubic meters/hour (extra high)
Refrigerant: R410A environmentally friendly refrigerant
Power supply source: outdoor unit
Original factory warranty period
- 2 years full machine warranty
- 5-year compressor warranty
