Mitsubishi Heavy Mitsubishi Heavy Industries SRK13CRS-S3/SRC13CRS-S3 Product Introduction
Origin: Thailand
Energy Efficiency Label: Level 2
Dimensions: Height 268 mm X Width 790 mm X Depth 222 mm
Maintenance period: 3 years
Registration and maintenance method: If you want to enjoy an extra month of product maintenance, please submit the warranty registration form online at: http://www.takwahhk.com/m/after_sales.aspx?id=68
Mitsubishi Heavy Industries' patented jet airflow technology
3D Auto Intelligent Air Supply Intelligent Mildew-proof Wind Lysozyme Filter Photocatalyst Washable Deodorizing Filter Energy-Saving Mode Powerful Refrigeration Mode Timing Switch
Product Specifications <br data-mce-fragment="1">Model:

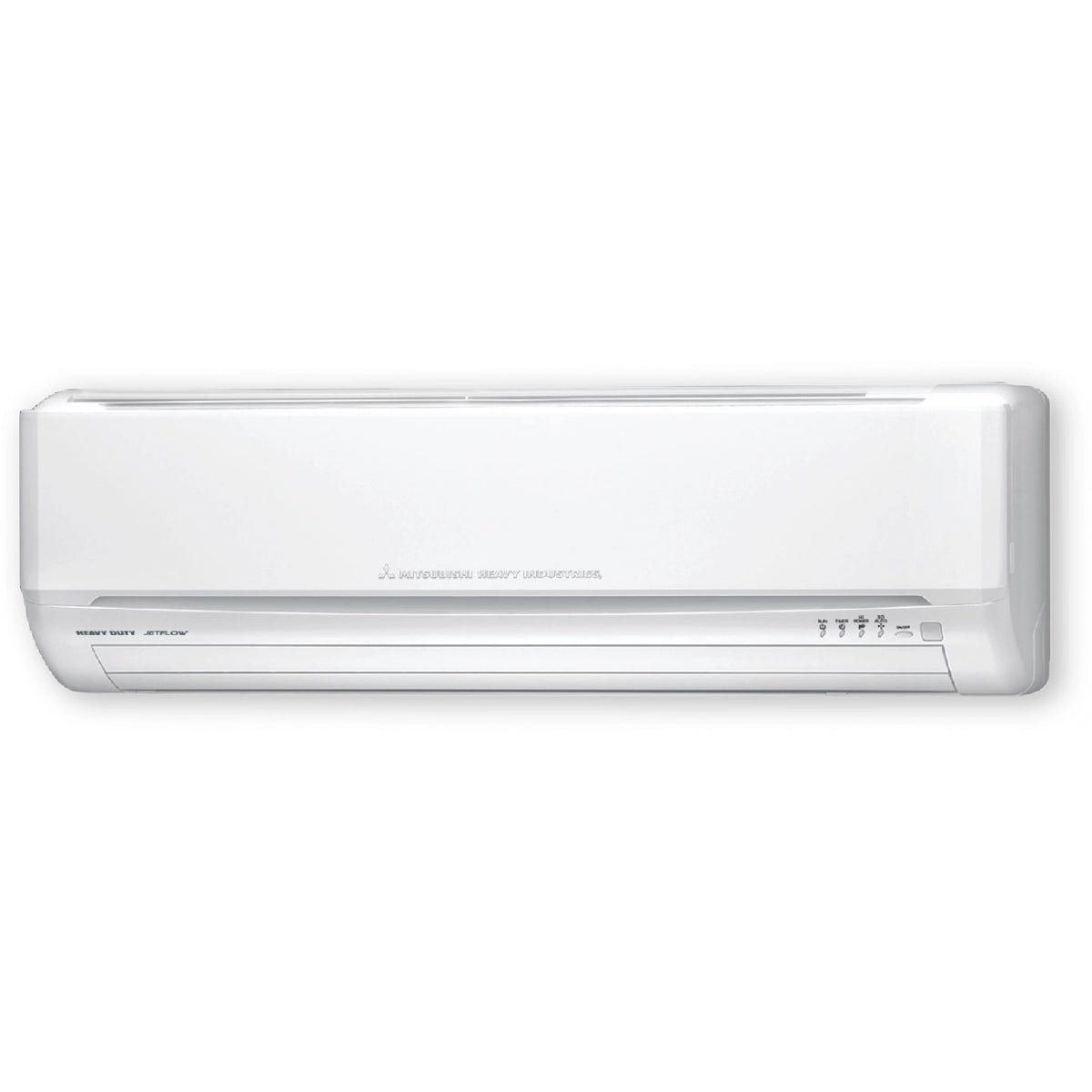

Indoor unit SRK13CRS-S3/A

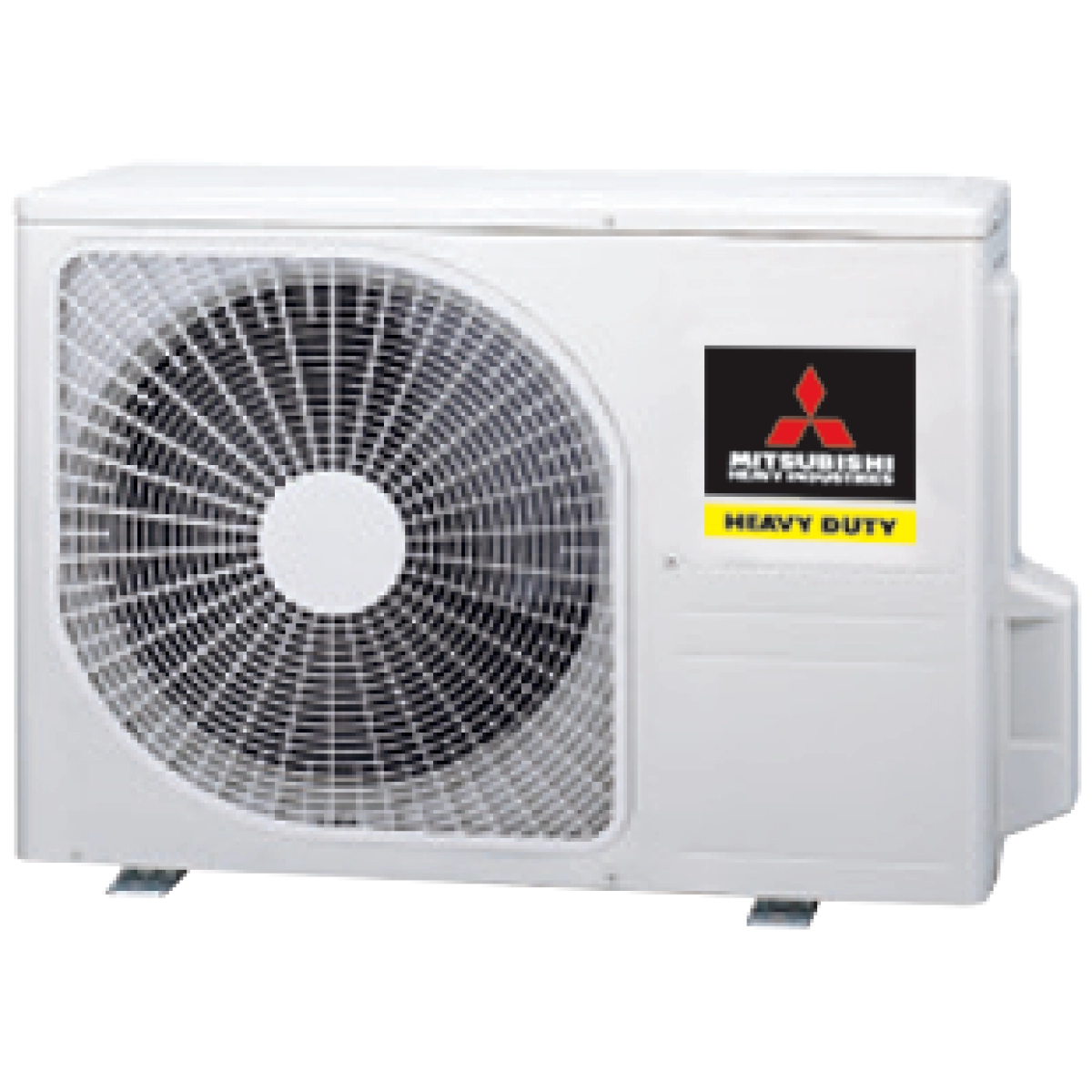

Outdoor unit SRC13CRS-S3/A
Power supply (Ph/V/Hz): 1 / 220-240 / 50
Cooling Capacity - Rating (Min - Max):
(kW) 3.6
(BTU/h) 12,280
Electricity consumption-cooling/heating (kW): 1.00
Operating current - cooling/heating (A): 4.6
COP energy efficiency value (cooling/heating): 3.6
Noise level (low-high):
Indoor unit (cooling/heating) dB(A): 36 - 40
Outdoor unit (cooling/heating) dB(A): 49
Air flow (high-low):
Indoor unit (cooling/heating) m3/min: 10.0
Dimensions (height x width x depth):
Indoor unit (mm): 268 x 790 x 222
Outdoor unit (mm): 540 x 780 (+62) x 290
net weight:
Indoor unit (kg): 9.5
Outdoor unit (kg): 35.0
Refrigerant type: R410A
Piping diameter-liquid/gas mm(in): 6.35(1/4") / 12.70(1/2")
Maximum piping height difference (m): 5
Maximum piping length (m): 15
Number of pieces: 1.5
