Origin: Thailand
Energy Efficiency Label: Level 1
Dimensions: Height 262 mm X Width 769 mm X Depth 210 mm
Maintenance period: 1 year
Registration and maintenance method: If you want to enjoy an extra month of product maintenance, please submit the warranty registration form online at: http://www.takwahhk.com/m/after_sales.aspx?id=68
Mitsubishi Heavy Industries' patented jet airflow technology
3D Auto Intelligent Air Supply Intelligent Mildew Wind Energy Saving Mode Powerful Cooling Mode Timing Switch
Product Specifications <br data-mce-fragment="1">Model:

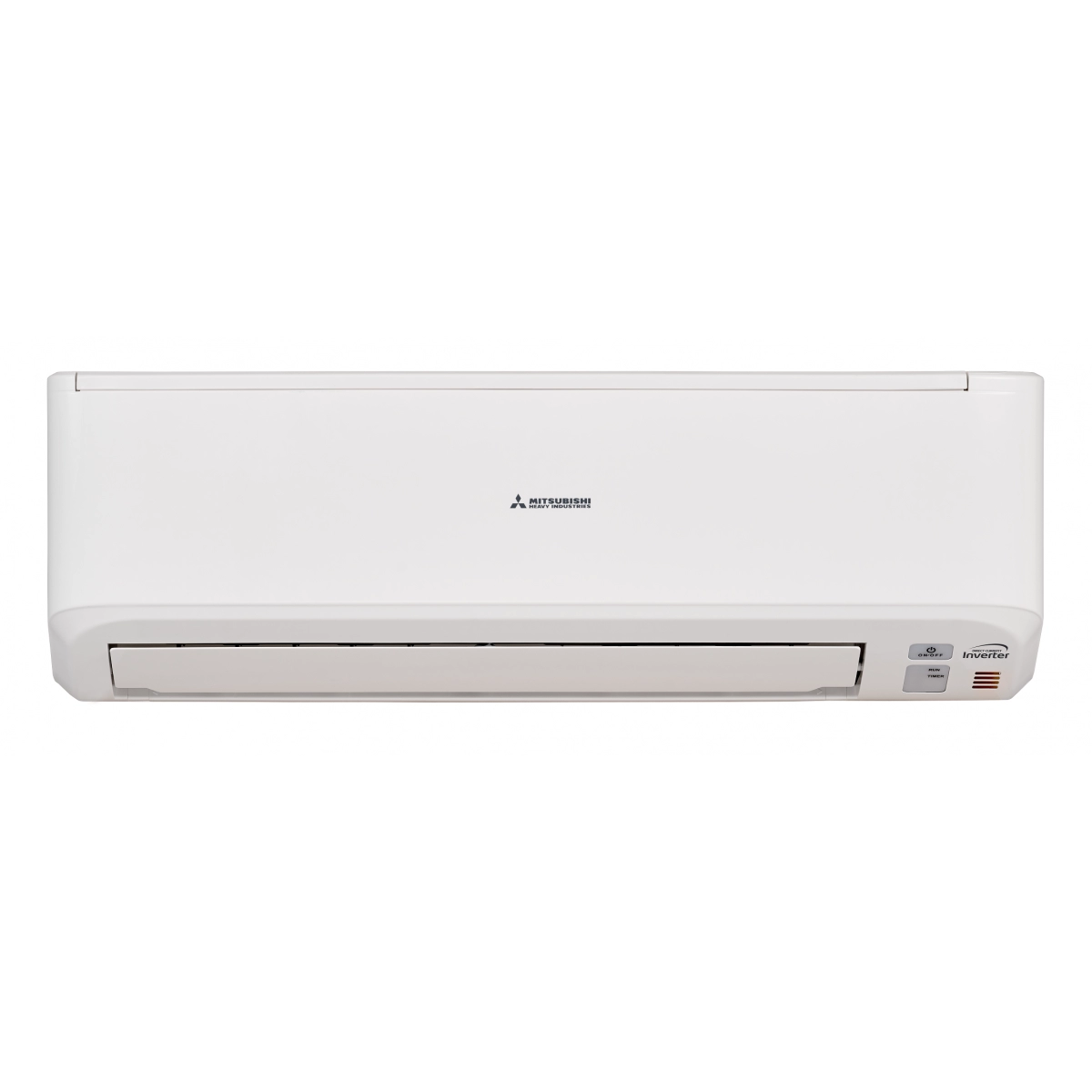

Indoor unit SRK18YN-S7
Outdoor unit SRC18YN-S7
Power supply (Ph/V/Hz): 1 / 220-240 / 50
Cooling capacity:
(kW) 5.0
(BTU/h) 17,060
Power consumption - cooling (kW): 1.64
Operating current (A): 7.8/12.5
COP energy efficiency value (refrigeration): 3.05
Indoor unit:
Air flow speed (m³/min): 10.1/7.2/3.8
Sound pressure level dB(A): 49/39/25
External dimensions (height x width x depth) mm: 262 x 769 x 210
Net weight (kg): 7
The outdoor unit:
Air flow speed (m³/min): 35
Sound pressure level dB(A): 55
External dimensions (height x width x depth) mm: 595 x 780 (+62#) x 290
Net weight (kg): 39
Refrigerant type/quantity: R410A / 1.20(15m)
Piping size (liquid/gas): Ø6.35 / Ø12.7
Refrigerant piping length (one direction) m: Max.25
